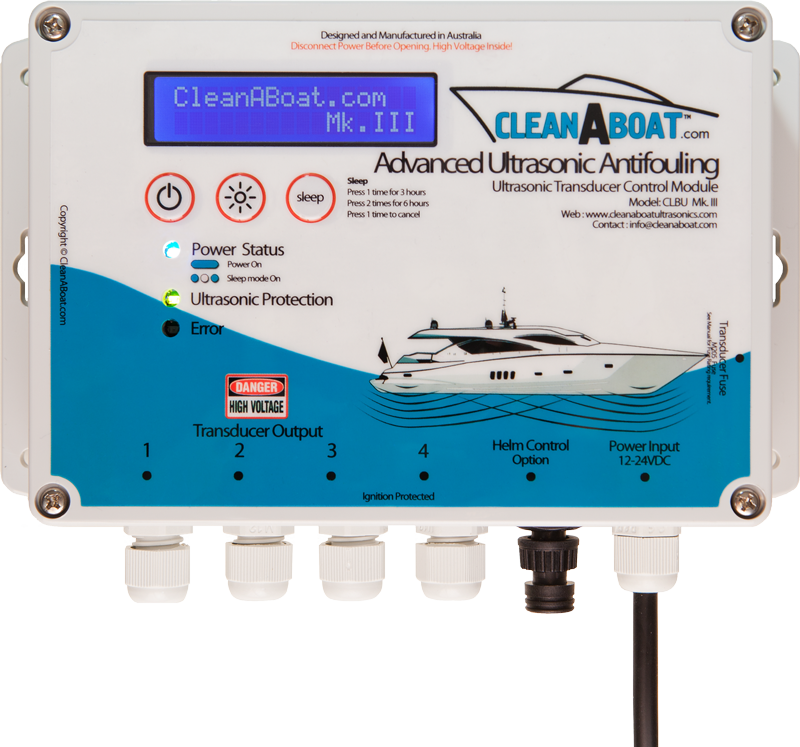

Advanced Ultrasonic Antifouling Double Unit

Our Ultrasonic Antifouling Double Unit is developed to provide two(2) independant Ultrasonic transducer outputs. This unit can be operated using either one or two of our 50W Hull Transducers or. Providing protection with 2 x Hull Transducers for a vessel up to 19m in water hull length Read Tech Specs

Output Options Explained Each Output is capable of operating either 1 x Hull Transducer OR 2 x Mini Transducers. Each output is independant, meaning a Double unit can operate up to 4 x Mini Transducers
or any mix of Hull and Mini Transducers IE 1 x Hull Transducer and 2 x Mini Transducers.

Standard Package Contents:

1 x CLBUMK3D
Double Ultrasonic Antifouling Module

1 x 4m + 1 x 8m Ultrasonic Transducer Cables

1 x 3m 12-24VDC Power Cable

2 x 50W Hull Transducers + Mounting Rings

1 x 2-Part Bonding Epoxy Package

- Mini Transducer Options Available -

50W Hull Mount Ultrasonic Transducer

Our 50W Hull Mounted Ultrasonic Transducer is a specially tuned High Powered Ultrasonic Driver. Encapsulated into our Solid PVC capsule and mounted with a watertight Connector. Installation is a simple provess of preparing and bonding the Transducer to the hull in a strategic location and connecting the water tight plug.

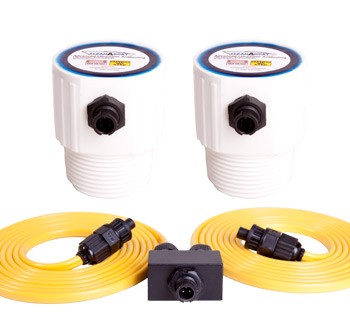

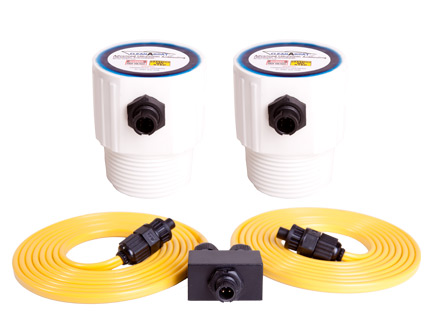

Mini Targeted Protection Transducers. (Kit of 2 Transducers + Splitter & Cables)

We are the first and only to offer our patent pending Mini Transducer system for targeted Ultrasonic Antifouling protection. These are specially tuned smaller versions of the Hull Transducers that operate using a standard output from our Control Module. They come in a kit of 2 Transducers and a Splitter Box as shown in the image to the right. The splitter box shown takes one of your Ultrasonic Transducer outputs and “splits” it into two of our Mini Transducers.

Applications: Our Mini Transducer system is developed for enhanced protection, to be used with Hull Transducers to target extra protection to areas such as Sea Strainers, Rudders, Props and Shafts, Skegs, Seawater Piping, Stern Drive Legs, Trim Tabs, Submerged Struts and many other areas.
