Technical Specifications

CleanABoat.com Ultrasonic Antifouling is the most advanced, affordable, reliable and the highest value for money Ultrasonic Antifouling System available Worldwide. Manufactured in-house in our facility on the Gold Coast in Australia, we ship worldwide. View our detailed specifications below and feel free to contact us if you have any questions.

Click here to view the Installation Manual

CleanABoat Ultrasonic Antifouling Protection Module Front View

Height: 121mm

Width: 201mm including mounting tabs

Depth: 55mm

Weight: ~1.5-2kg

CleanABoat Ultrasonic Antifouling Protection Module Front View

CleanABoat Ultrasonic Antifouling Protection Module Front View

  • 3m long 12-24VDC power cable.
  • 2 or 4 (depending on unit) transducer cables for IP68 connections on Control Module using Cable Glands.
  • Water Tight Fuse Holder (IP68)
  • Helm Control Output (IP67) – Available soon. Helm Control addon

CleanABoat Ultrasonic Antifouling Protection Module Front View

Hull Transducer Specifications:-

  • Output Power: 50W
  • Cable Length(Double Unit): 1 x 4m, 1 x 8m(custom lengths available on request)
  • Cable Length(Quad Unit): 1 x 4m, 1 x 6m 1 x 9m, 1 x 15m (custom lengths available on request)
  • Mounting Options: Screw Mounting (Mounting Ring included)
CleanABoat Ultrasonic Antifouling Transducer

Mini Transducer Specifications:-

  • Cable Length: 2m each
  • Mounting Options: Direct Bonding
CleanABoat Ultrasonic Antifouling Transducer



 CleanABoat Ultrasonic Antifouling Protection Module Front View

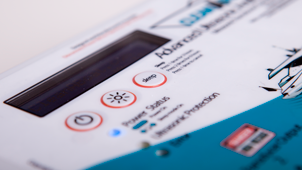

  • Sleep Function: 3 or 6 Hour Sleep modes. Button on front panel of module. Press once to enable 3 hours sleep – Press twice to enable 6 hours. Unit will then beep the number of hours it will sleep for.When Sleep is opperating the Power light will flash slowely, the LCD will display a countdown. Transducer operation will cease until the countdown expires.
  • Error Notifications: Detailed Error status will be displayed on the LCD Display. Buzzer will sound on Errors to attract attention to the problem.
  • Power Button: Main Power On/Off control
  • Active Self Monitoring: Internal Input and Output Current Monitoring, Temperature Monitoring and Active Output control ensures ultra long opperating life.

CleanABoat Ultrasonic Antifouling Transducer IP68 cable gland

CleanABoat Ultrasonic Antifouling Protection Module Front View

Total Power Consumption Figures based on specific configuration options below

1 x Hull Transducers:-

  • Average Amps 220mA @ 12 VDC
  • Average Amps 110mA @ 24 VDC

2 x Hull Transducers:-

  • Average Amps 420mA @ 12 VDC
  • Average Amps 210mA @ 24 VDC

4 x Hull Transducer:-

  • Average Amps 840mA @ 12 VDC
  • Average Amps 420mA @ 24 VDC



 CleanABoat Ultrasonic Antifouling Protection Module Front View

  • Internal Temperature control system with active compensation ensures system never exceeds operating range.
  • Internal Protection Replaceable Fuse
  • Onboard Current Monitoring and Isolation Function
  • Inline Protection Fuse
  • Sealed Enclosure (IP65) reduces potential for failures
  • Quality Internal Power Protection system
  • High Quality Auto Switching 12-24V Input
  • High Temp Rated Fire Resistance Enclosure – up to 125°C (-40°C to +125°C)

CleanABoat Ultrasonic Antifouling Protection Module Front View

Module Enclosure: IP65 of IEC 529 and NEMA 4 (hose and dust proof). -40 to +125C.

Transducer Connection(to Transducer): IP67 Waterproof Locking connector
Transducer Connection(to Module): IP68 Transducer, Cable Gland on Module.

CleanABoat Ultrasonic Antifouling Transducer IP68 cable gland



Double Module CLBMK3D
Quad Module CLBMK3Q
Input Voltage
Auto-Selecting 12VDC or 24VDC Input.
Enclosure Rating
IP65 of IEC 529 and NEMA 4 (hose and dust proof). -40 to +125C. Made from Polycarbonate material. White in colour
Power Consumption
Avg. 420mA with 2 x 50W Transducers @12VDC
Avg. 210mA with 2 x 50W Transducers @ 24VDC
Avg. 840mA with 4 x 50W Transducers @ 12VDC
Avg. 420mA with 4 x 50W Transducers @ 24VDC
Transducer Output
2 x Transducer Outputs. 50W Each PortOutputs are via 4 x IP68 rated cable glands for easy quick installation. Transducer cable is passed through the cable gland and terminated to the colour coded and labeled screw terminals inside the box.


4 x Transducer Outputs. 50W Each PortOutputs are via 4 x IP68 rated cable glands for easy quick installation. Transducer cable is passed through the cable gland and terminated to the colour coded and labeled screw terminals inside the box.


Helm Control Output
All Units have Helm Control Addon Port (IP67 rated connector) with protective cap.
Sleep Function
All Units have Sleep Option. 3 & 6 Hour Sleep timer function.
Enclosure Transducer Opperation Indicators
All units have Active Current Monitoring, system will detect a failed transducer and raise alarm, displaying the failed transducer and other relative information on the LCD Display
